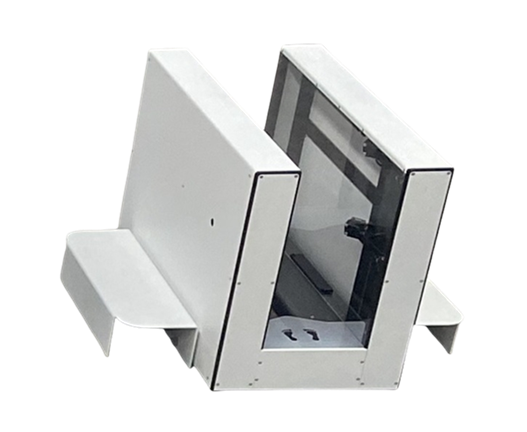

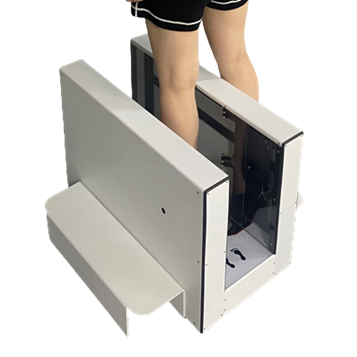

UPOD-HD 3D Laser Full-Foot Scanner

  • Fast true 3D laser scan. Auto landmark, measurement, and diagnostic.
  • Custom shoes and orthotic insoles for foot clinics and retail stores.
    •

    Download FactSheet

UPOD-HD EQUIPMENT INFORMATION


UPOD-HD

<b>UPOD-HD</b>

UPOD-HD

UPOD-HD

<b>UPOD-HD</b>

UPOD-HD

Hardware:

  • Full-foot in non/semi/full-weight

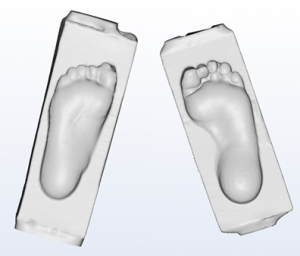

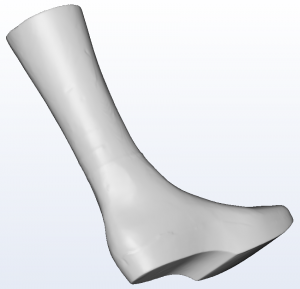

  • Foam Impression, Plaster Cast, Shoe Last
  • Scan 5.9-16.9s one-way for 3D
  • Scan round-trip captures color texture
  • Normal indoor lighting, no shield required
  • Clean 3D mesh, +/- 0.5mm accuracy
  • Scan Volume 380L X 180W X 180H mm
  • Scanner Body: 682L X 350W X 367H mm
  • Scanner Body: 19Kg (42Lb)
  • Load Capacity: 180 Kg
  • External Power adapter AC 100-240V
  • One-year limited warranty

Software:

  • Win10 only, doesn't support Win7/8

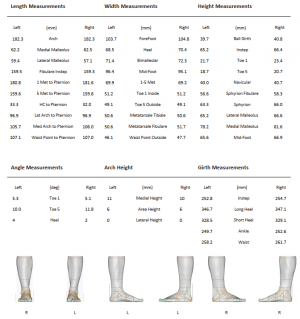

  • Auto 30 Landmark and 43 Measurements
  • Auto diagnostic for arch type, hallux, and heel
  • Mark landmarks on foot then drag points to match

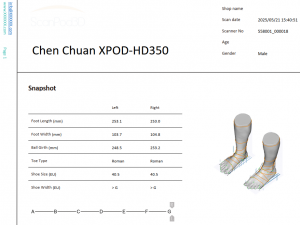

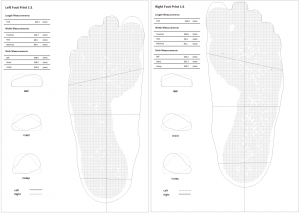

  • Foot report with manual annotations
  • Export to STL/WRL, PDF, CSV files
  • FTP send order to shoe/insole fabrication
  • Customize software logo, sell your own brand
  • Customize UI language to your local language
  • Customize RX form for custom shoe/insole
  • For developers: SDK call scanner to receive data

UPOD-HD CONFIGURATION

UPOD-HD Configuration

Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license
<b>UPOD-HD Configuration:</b> Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license.

UPOD-HD Configuration

Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license
<b>UPOD-HD Configuration:</b> Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license.

UPOD-HD Configuration

Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license
<b>UPOD-HD Configuration:</b> Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license.

UPOD-HD Configuration

  • Included: Scanner body, NUC10i7FNH-PC, Power Adapter, Foot Switch, Side standing boxes, and software license.
  • Buyer supply monitor/keyboard/mouse which are plugged into the NUC10i7FNH-PC.
  • Cannot connect to external laptop or desktop.
  • Included Intel NUC10i7FNH-PC has Win10, 8G Ram, CPU I7-10710U or equivalent.

UPOD-HD OPTIONS AND OEM

UPOD-HD Options and OEM

  • Scanner in black or white (as shown)
  • OEM design and production
  • Custom software development

UPOD-HD vs UPOD


UPOD-HD vs UPOD

  • Higher 3D resolution/accuracy
  • Larger scan volume, scan higher
  • Slower scan speed
  • More premium appearance
  • Software features the same

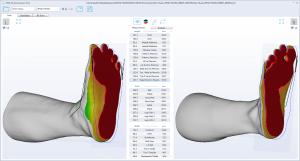

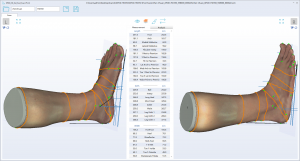

UPOD-HD SOFTWARE UI GALLERY

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI

UPOD-HD SOFTWARE UI
