USOL

Small and light. Reliable after years of field use worldwide.
Fast true 3D laser scan. Auto landmark, measurement, and diagnostic.
Custom shoes and orthotic insoles fabrication for foot clinics.
Prefab shoes and orthotic insoles selection for retail stores.



USOL/USOL-DUO Equipment information

USOL/USOL-DUO Features (New)

  • More measurement metrics
  • More accurate Arch Index

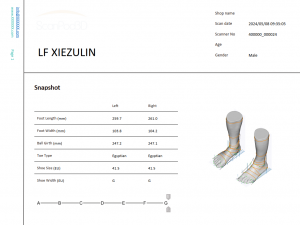

  • More elaborate PDF report
  • Direct to FTP sending file after Save
  • Double-Scan mode: Relaxed/Corrected for Before/After compare
  • Scan Modes allow exposure value change
  • Customize PDF report format
  • Automatically identify 2 met points if blue markers are placed
  • Much more reliable hardware design
  • Much easier repair/replacement of parts (on-site)
  • Foldable heel camera with laser on USOL
  • Heel camera without laser on USOL-DUO
  • Front vertical toe laser help align foot/ankle
  • Supports normal scan speed with low-cost CPU
  • Wechat/Facebook integration (to be finished…)

USOL/USOL-DUO Features (carried over from LSR/LSR-DUO)

  • Auto diagnostic for arch type, hallux, and heel (manual)
  • Mark landmarks on foot then drag points to match
  • Foot report with manual annotations
  • Export to STL/WRL, JPG/PNG, PDF report, CSV data files
  • FTP send order to orthotic insole/shoe fabrication
  • Change interface language to your local language
  • Customize software logo, sell your own brand
  • Customize RX form for custom shoe/insole
  • For programmers: CMD/TCP call scanner to receive
    dataintegration into your own CAD software and database
  • Encrypt scanners to lock files
  • Custom top plate and side panel design

Comparison

USOL(New) LSR USOL-DUO(New) LSR-DUO
Foot/Foam Box/Plaster Cast Yes/Yes/Yes Yes/Yes/Yes Yes/Yes/Yes Yes/No/No
Foot: Non/Full/Semi-Weight Yes/Yes/Yes
Indoor Lighting Conditions Yes, no darkroom or shielding required. But should avoid direct sunlight.
3D Accuracy Clean 3D Mesh. +/-1.0mm. USOL/USOL-DUO has better 3D resolution.
3D output file STL/WRL
Color Texture (Round-Trip)
Yes/Yes. WRL supports color texture on 3D file.
Yes. A unique feature not found on other 3D foot scanners.
Heel Camera/Heel Laser/Toe Laser Yes/Yes/Yes Yes/Yes/No Yes/No/Yes No/No/No
Size (mm) / Weight(Kg) 490*230*69 / 4.7 600*265*89 / 7.0 490*440*69 / 7.7 600*515*8.9 / 11.0
Scan Volume (mm) 330*140*80 350*140*70 330*140*80 X2 350*140*70 X2
Load Capacity 180 Kg
Minimum CPU
---Normal Speed Scan
---High Speed Scan
Minimum RAM
USB Port 2.0 or 3.0

Atom Z8350 (2.9 sec)
I5-6200U (1.9 sec)
4G
Yes

I5-6200U (2.9 sec)
No Support
4G
Yes

Atom Z8350 (2.9 sec)
I5-6200U (2.2 sec)
4G
Yes

I5-6200U (2.9 sec)
No Support
4G
Yes
Windows 7/8/10 No/No/Yes. Win10 only Yes/Yes/Yes No/No/Yes. Win10 only Yes/Yes/Yes
Power Supply (adapter) 100~240V 50/60HZ AC to DC 12V/3.0A. Worldwide compatible. Major country plug types are provided.
Warranty (Limited) 1 Year (per warranty statement)

USOL/USOL-DUO Configurations

USOL

USOL Standard: Scanner, Power Adapter, USB Cable (White), Foot Switch, Heel Camera (folding with laser). Same as LSR standard config.

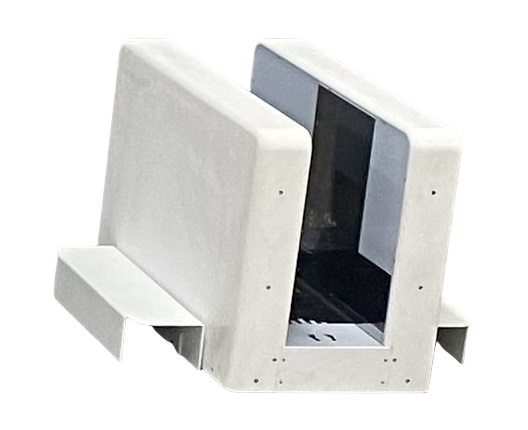

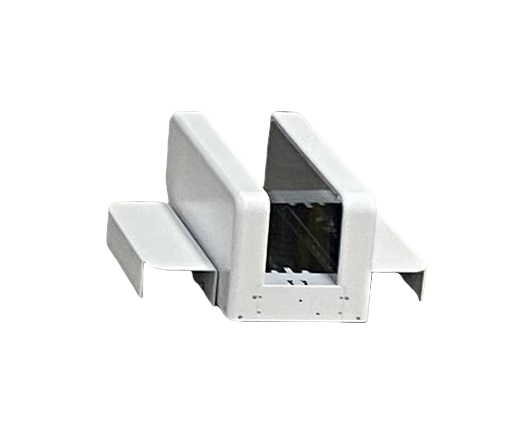

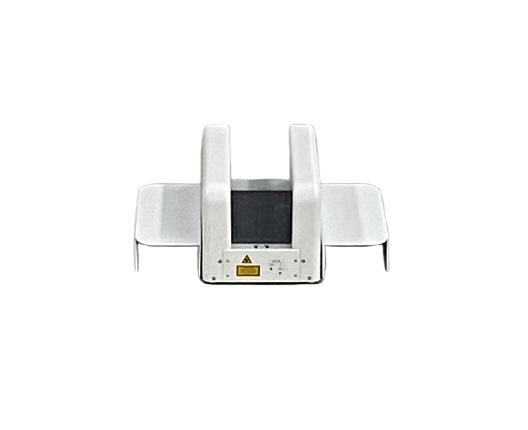

USOL Floor: USOL Standard + Toe Laser, Side Steps (Pair).

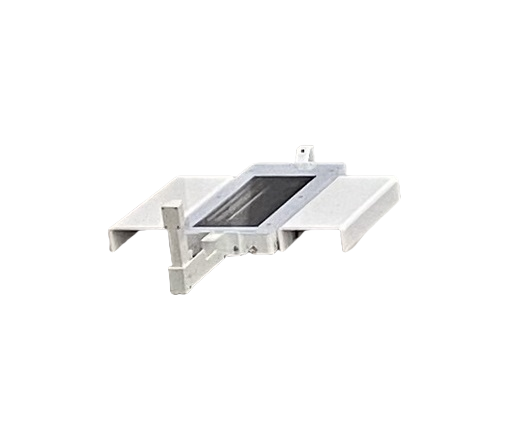

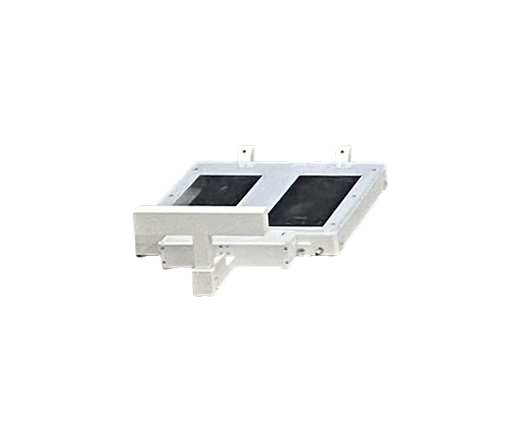

USOL Vertical: USOL Standard + Toe Laser, Folding Frame (with wheels) and VESA Bracket.
Folding Frame (wheels) and VESA Bracket
Mounting position for supine or prone
Height adjustable 500-1000mm, chair to recliner
Heel Camera records heel position
Heel and Toe laser help to control foot posture

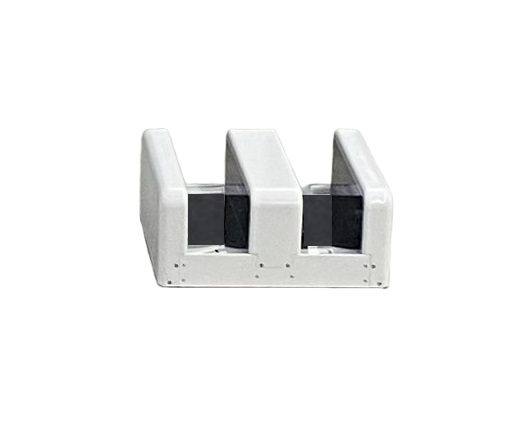

USOL-DUO

USOL-Duo Standard: Scanner, Power Adapter, USB Cable (White), Foot Switch. Same as LSR-DUO standard config.
USOL-DUO Floor: USOL-DUO Standard + Toe Laser, Heel camera (no laser).
